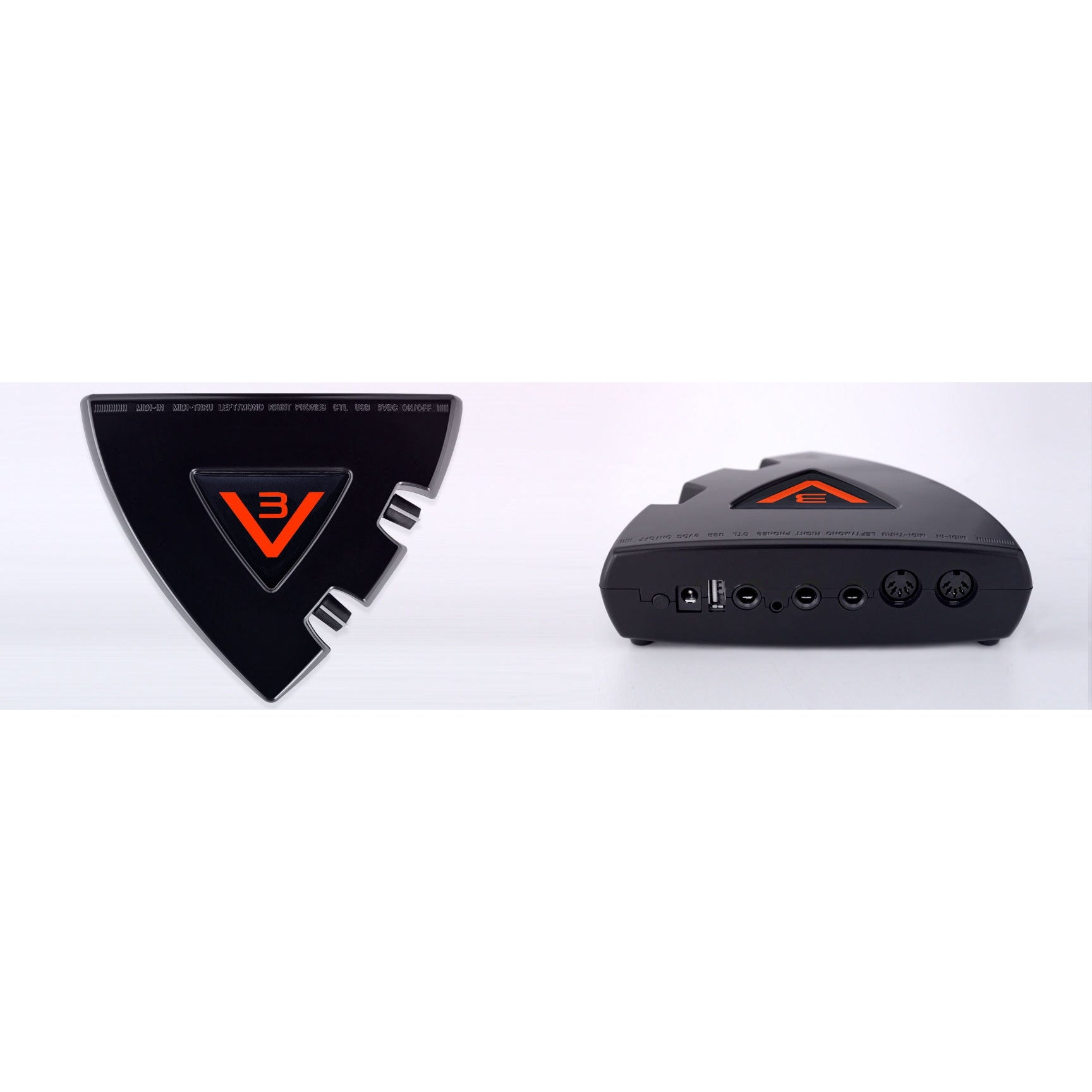

V3 Sonority XXL Sound module

1. Master Volume
2. Master Reverb
3. Power On
4. Power 9VDC
5. USB Host: USB Audio Class 1 compliant
Our device supplies any USB MIDI keyboard with 100 mA. If your keyboard does not need more than 100 mA, you do not need an extra power supply for your keyboard. It´s not possible to use a USB-HUB to connect more than one USB slave unit.
6. Pedal: This port connects the sustain pedal through MIDI channel 1. Use a controller pedal for the half pedal function (ex. ROLAND DP10) to create varying lengths of sustained resonance.
7. Headphones
8. Audio out: STEREO
MONO
AUX OUT
Triangle devices allow for up to 4 audio outlets.
For more information on how to use these optional audio outputs 3 & 4, please see the manual.
9. MIDI THRU: MIDI connection to another MIDI device.
10. MIDI IN: Standard MIDI-IN
USB and MIDI-IN can be used simultaneously.
Measurements: 12cm (L) x 12cm (W) x 6cm (H)
Weight: Weight: 0.21 kg
TONE GENERATOR DREAM CPU 5716B: 256-voice polyphony
16 MIDI channels – multi-timbral
Main reverb and chorus effect
2 MFX insert multi-effects
MEMORY: 4 GB flash memory – power up and play
