SKU:BRA-200427
- Traditional drawbar organ tone reproduced in detail by the new sound engine "MTW2".
- Intuitive and easy-to-understand user interface for easy access to all functions.

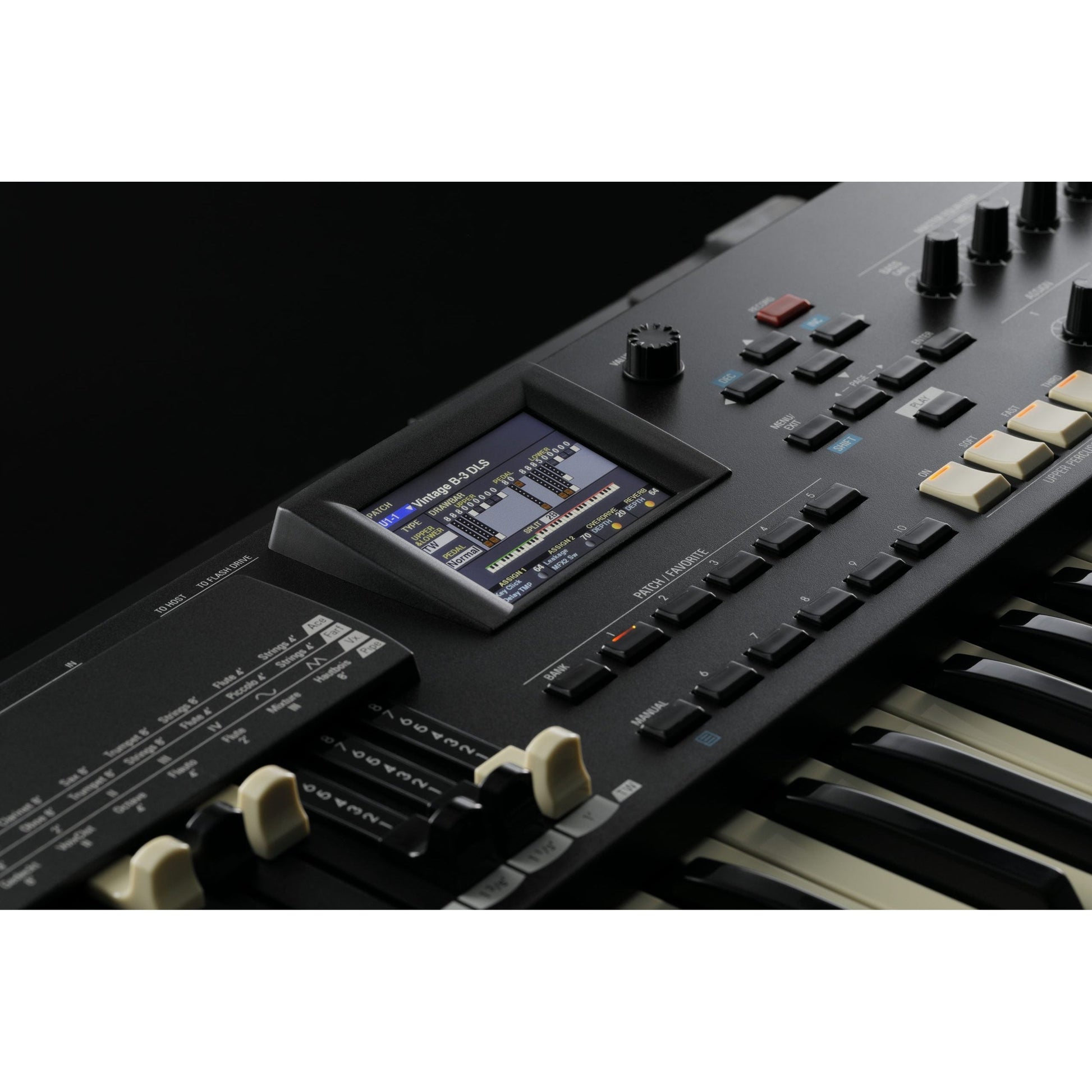

- A color display enables highly visible and intuitive operation, in both performance and programming situations.
- Pitch bend and programmable modulation wheels.
- User-assignable knobs and switches which can be used to control internal functions and external devices.

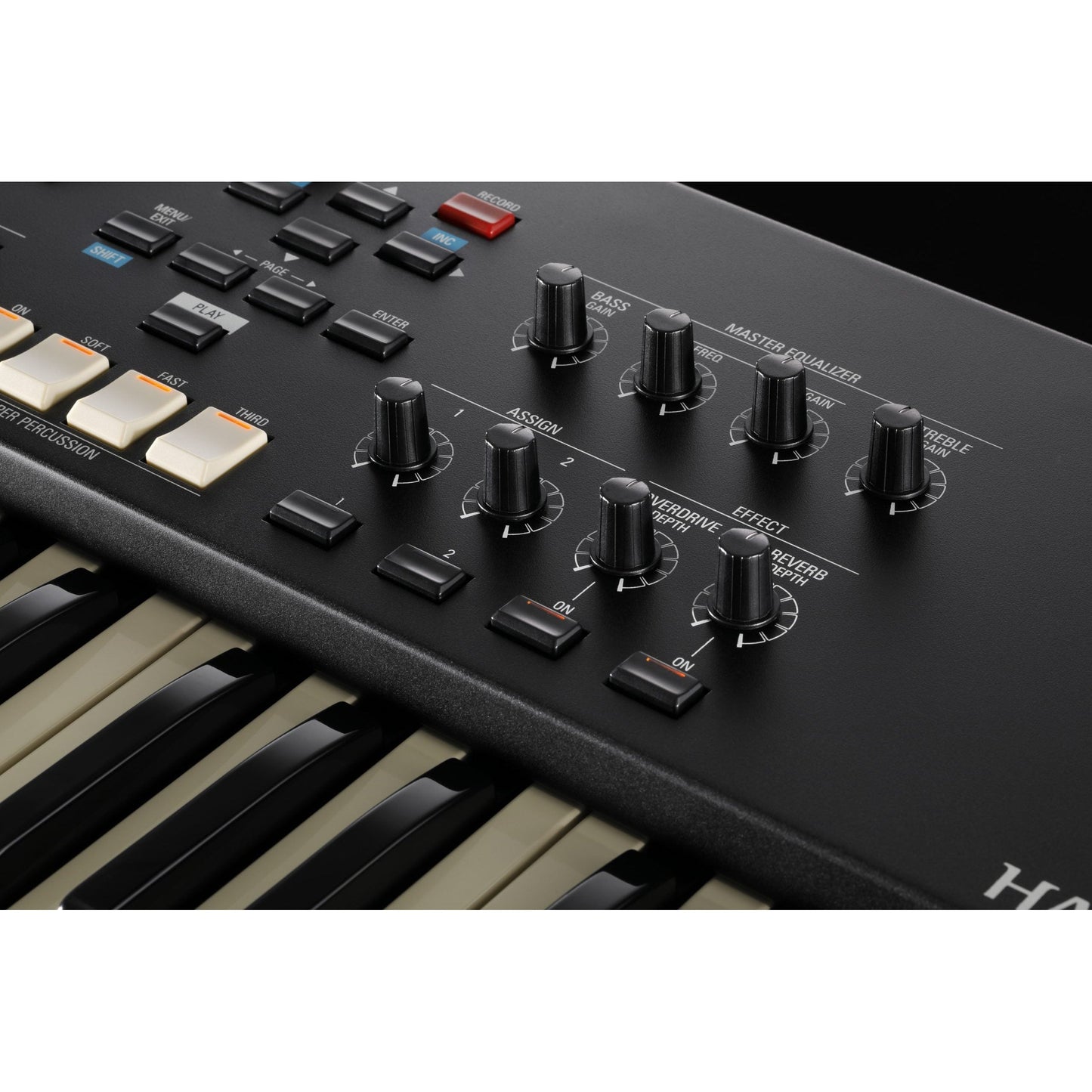

- A Master Equalizer providing tonal control of any performance environment.
- Our exclusive 9-level virtual multi-contact system expresses the distinctive feel of a vintage Hammond's multi-contact keyboards. Additionally, multi-contact feel on the pedals will be present if you connect any of our (optional) XPK-130G/XPK-200G/XPK-200GL MIDI pedalboards.
- The onboard Digital Leslie adopts a new-generation algorithm modeling the airflow of Leslie rotors, faithfully reproducing their unique tone and three-dimensional effect.
- A new tube modeling system reproducing "vacuum tube warmth"-highly desired by all Hammond players.
- An exclusive system emulating the "matching transformer" of vintage Hammond organs adds fullness to the sound.
- In addition to hyper-accurate drawbar tones, the XK-4 also features Italian, British, and Japanese transistor combo organ models, with the ability to register these instruments in the authentic manner.
- The XK-4 is equipped with multiple ranks of Classical and Theatre Pipe Organ tones, which can be registered in the traditional manner. These sounds may be custom tailored to your liking.
Beskrivelse
Hammond XK-4 Portable Organ bygger bro mellem tradition og banebrydende teknologier og bringer "King Of Instruments" til enhver musiker i en kompakt og overkommelig pakke!
XK-4 er udstyret med en ny lydmotor, kaldet "Modelled Tone Wheel 2 (MTW2)", der præcist gengiver de 91 tone hjul i hjertet af alle vintage Hammond-orgler. Denne nye teknologi tillader udtrykket af ufuldkommenheder, hvilket giver vintage Hammonds deres særpræg, såsom tonehøjdeudsving på grund af tonehjulsslør og volumenudsving på grund af decentrering.
Friheden til at tilpasse din tone har aldrig været større.
Du kan få al den "B-3"-oplevelse, du altid har ønsket dig.

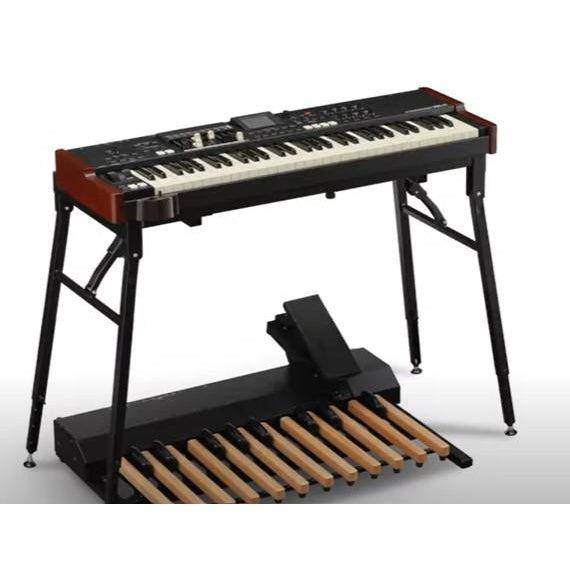

Excl. stativ og pedalspil
Video
Specifikationer
SOUND ENGINE:
TW2 (Modelled Tone Wheel 2), Simultaneous Polyphony: 61 (Tone Wheel Organ)
KEYBOARD
61-key with velocity, semi-weighted, Square-front ("Waterfall"-style)
ORGAN SECTION
3 (Upper, Lower, Pedal)
[Drawbars] : 1 set of 9 rows
[Organ type] : Manual keyboard: 5 (TW, Vx, Farf, Ace, Pipe) Pedalboard: 3 (Normal, Muted, Pipe)
[Percussion] : Buttons: On, Volume Soft, Decay Fast, Third Harmonic
EFFECTS:
Vibrato & Chorus, Multi Effect 1, Overdrive, Multi Effect 2, Matching Transformer, Leslie, Equalizer, Reverb
[Master] : Master Equalizer
KEY MAP [Internal zone] : Transpose, Octave, Split, Pedal To Lower, Pedal Sustain
[External Zones] : 3 Zones (assignable to each keyboard)
CONTROLLERS Pitch Bend wheel, Modulation wheel, Leslie (Bypass, Stop, Fast)
PRESET MEMORY [Favorites]: 10 banks x 10 numbers (Patches), 10 numbers (Pages)
[Patch] : Factory: 100, User: 100, Manual
[Custom Tone Wheel] : Factory: 4, User: 4
[Custom Pedal Registration] : Factory: 4, User: 4
[Custom Pipe] : Factory: 4, User: 4
[Custom Cabinet] : Factory: 8, User: 8
STORAGE: USB memory
DISPLAY: 320 x 240 pixel

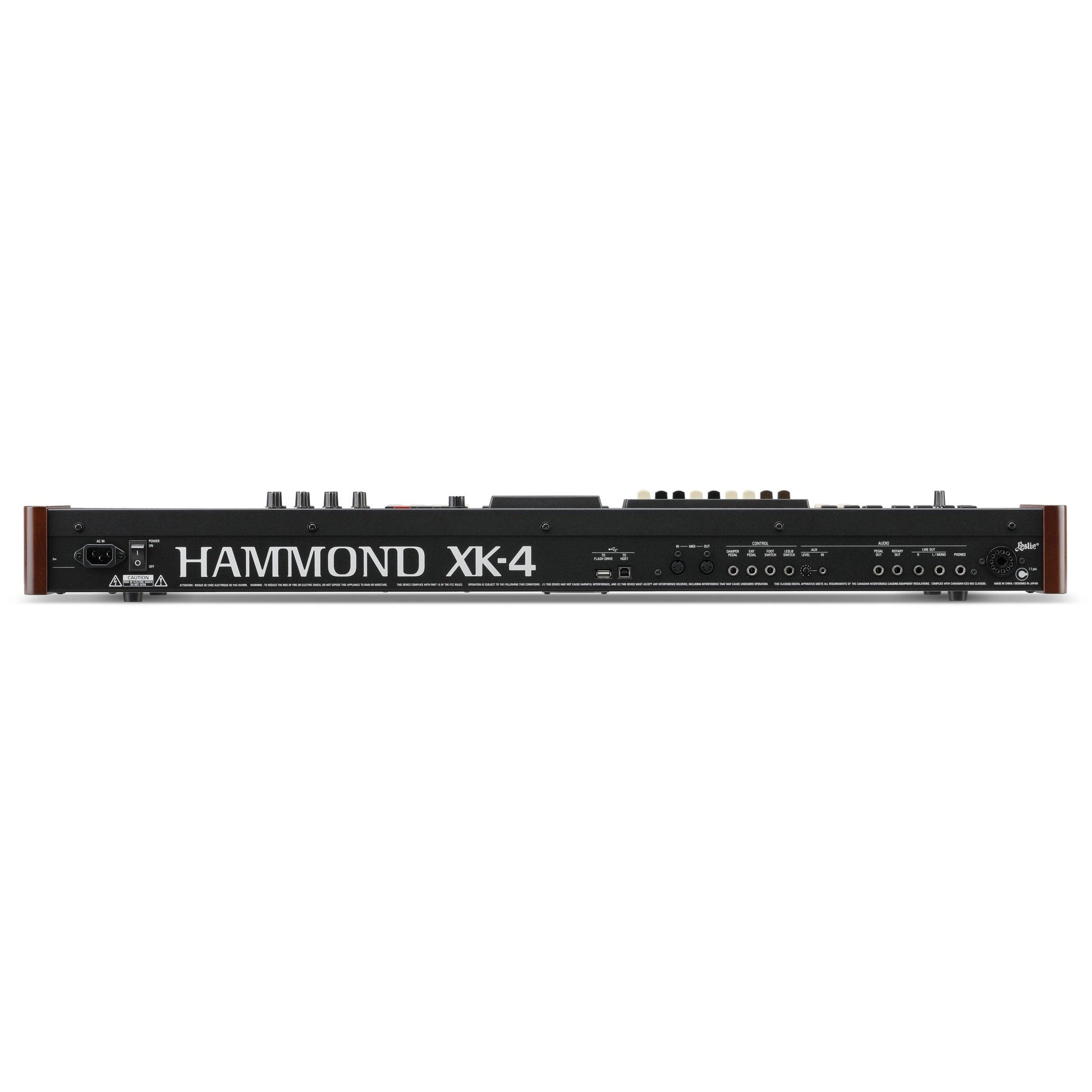

CONNECTIONS [MIDI] : IN, OUT
[USB] : To Host
[Audio] : Line Out L, R, Headphones Rotary Out, Pedal Out, Aux In (with Volume control)
[Leslie] : 11-pin, 1 or 3 channel compatible
[Others] : Leslie Switch, Foot Switch, Damper Pedal, Expression Pedal
RATED POWER CONSUMPTION 15W
DIMENSIONS 1004mm(W) x 322mm(D) x 109mm(H)
WEIGHT 9,4 kg
ACCESSORY AC Cord
